Power Supply 220V50HZ Aluminum Transparent High Speed Spiral Door Safety Efficiency Best Industrial Door Manufacturer Direct Supply
商品の詳細:
| Place of Origin: | CHINA |
| ブランド名: | DESEO |
| 証明: | CE/ISO9001 |
| Model Number: | HFD3000 |
お支払配送条件:
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| 価格: | 1200 USD |
| Packaging Details: | plywood package |
| Delivery Time: | 10-20 days depend on quantity |
| Payment Terms: | T/T |
| Supply Ability: | 200 PER MONTH |
|
詳細情報 |
|||
| 耐風性: | ≤2.0kn/m2 | 安全システム: | 光電センサー |
|---|---|---|---|
| 寿命: | ≥500万回 | 色: | オーダーに合わせて |
| モーター出力: | 0.75kW | 電源: | 220V/50Hz |
| サイズ: | オーダーに合わせて | 最後の速度: | 0.8m/s |
| ハイライト: | 220V50HZ high speed spiral door,aluminum transparent spiral door,PLC control spiral door system |
||
製品の説明

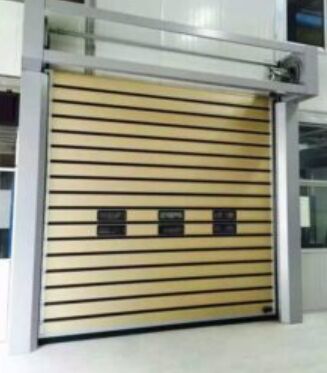

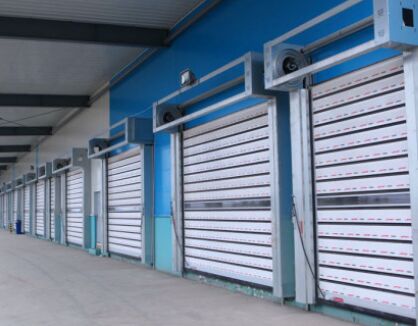

Power Supply 220V50HZ Aluminum Transparent High Speed Spiral Door Safety Efficiency Best Industrial Door Manufacturer Direct Supply
Product Description:
High-speed doors are a solution for exterior or interior doors, which with their speed of opening will ensure a more optimal flow of traffic and energy savings.
They are ideal for high-frequency passages in production halls, warehouses, hangars, distribution centers.
Spiral high-speed doors can also be used as garage doors.
High-speed spiral doors, thanks to guiding the panels with special wheels in the spiral console, can be used on the facade, as internal or external doors.
With the speed of work and insulation, they enable energy savings and improvement of temperature conditions in buildings, as well as optimal traffic flow.
Fast spiral doors are also suitable for garage spaces, so they can also be used as garage doors.
Curtain:
The fast spiral door is made from steel thermo-insulated 40 mm thick panels, which provide high thermal insulation.
The height of the panel is 300 mm.
Filling:The panels are filled with polyurethane.We offer the option of installing elements made of double plexiglass, which provides visual communication and additional light in the hall.As an option, it is possible to fill them with a circular perforated aluminum sheet (perforation diameter 5 mm).
Technical Parameters:
Advantages of our High-speed Spiral Doors:
Quiet operation and durability
Control electronics with a frequency regulator enable controlled operation and door speed, thus preventing rapid wear of the motor, brakes and rolling elements.
Heat insulation
The 40 mm steel thermo-insulated panel provides high thermal insulation. λ=1.04 W/(m²·K)
Speed
In accordance with DIN EN 13241-1:
Opening speed from 0.8 to 2 m/s, closing speed from 0.5 to 1 m/s
Automatics
The door is operated by means of a switch button, remote control, or sensor, according to the customer’s request.
FAQ:
1. Who are we?
Our headquarters is located in Jiangsu, China.
2. How do we ensure quality?
Always confirm the specifications in advance before placing an order
Final inspection is always carried out before shipment.
3. What can we offer?
Garage doors, high-speed rolling shutter doors, crystal rolling shutter doors, telescopic doors, etc
4. Why can we be your best choice?
We have a very wide range of products, competitive prices, professional technology and services, including after-sales service.
5. What services can we offer?
With professional industrial knowledge, excellent and stable quality, and on-time delivery, we will try all the other products you want
6. Minimum order quantity and size:
Usually, we can accept one set and customize the size
7. Payment
Telegraphic transfer and letter of
