Cold Storage Insulated Sectional Overhead Door SUS304 Steel Panel Beaufort 11 Wind Resistant EPDM Sealing System
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | DESEO |
| 証明: | CE/ISO9001:2008 |
| モデル番号: | SD5300 |
お支払配送条件:
| 最小注文数量: | 1台 |
|---|---|
| 価格: | USD 900-1500/UNIT |
| パッケージの詳細: | 防湿層を備えた合板パッケージ |
| 受渡し時間: | 15～30日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | 月あたり150単位 |
|
詳細情報 |
|||
| 材料: | SUS304 ステンレス鋼、アルミニウム合金 | パネルの厚さ: | 50mm |
|---|---|---|---|
| パネル幅: | 500mm | 芯材: | ポリウレタンフォーム 48kg/m3 |
| シーリングシステム: | EPDMゴム全周シール | 耐風性: | ビューフォート スケール 11、28m/s |
| 熱保存: | 4.5W/mh | 手術: | 電動、リモコン、手動 |
| 遮音性: | 26 dB | 耐火性: | クラスA |
| 寿命: | 10年 | 最高次元: | 12m×8m |
| 表面処理: | パワーコーティング 30um | ガイドレール: | 2mm 亜鉛メッキ鋼 |
| 応用: | 冷蔵倉庫、倉庫、工場、食品加工 | ||
| ハイライト: | Cold storage insulated sectional door,SUS304 steel panel overhead door,Wind resistant EPDM sealing door |
||
製品の説明

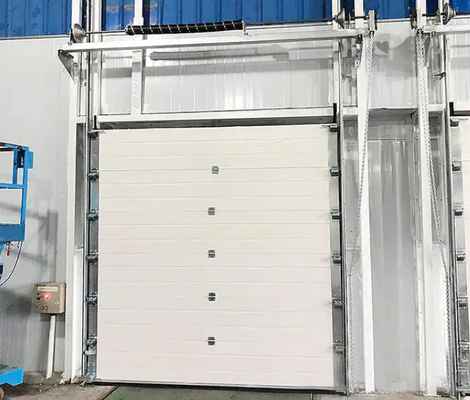

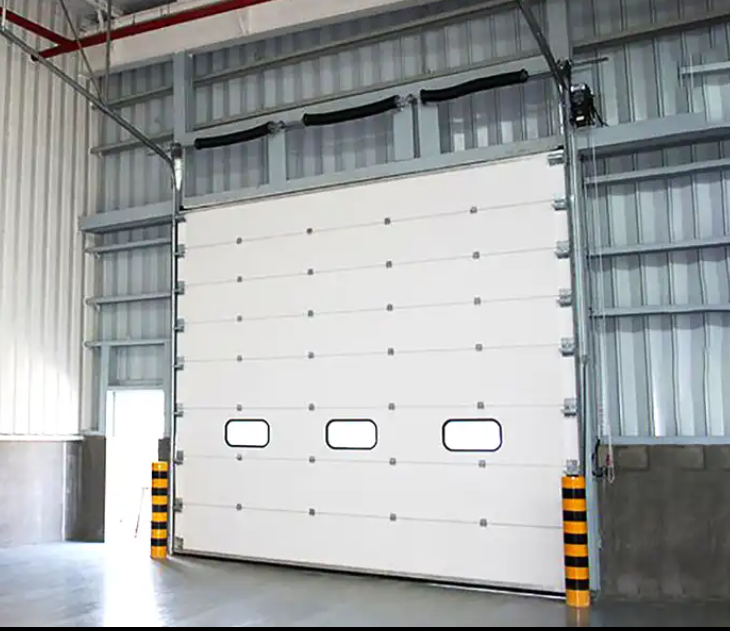

Cold Storage Insulated Sectional Overhead Door
The SD5300 cold storage sectional overhead door is purpose-built for temperature-controlled environments. Constructed with SUS304 stainless steel panels and a comprehensive EPDM sealing system, it maintains thermal integrity in freezer rooms, cold chain logistics centers, and food processing facilities.
Key Features
- SUS304 Stainless Steel Construction: Superior corrosion resistance and hygiene compliance, ideal for food-grade and pharmaceutical cold storage environments.
- EPDM All-Round Sealing: Complete perimeter sealing on both sides, top, bottom, and between door panels eliminates thermal bridging and prevents condensation.
- Beaufort 11 Wind Resistance (28m/s): Engineered for external installations in coastal and high-wind regions.
- 50mm Thick Insulated Panels: Enhanced thermal barrier minimizes cold loss and energy consumption in sub-zero environments.
- Class A Fire Retardation: Compulsory safety certification for cold storage and industrial facilities.
Technical Specifications
| Material | SUS304 Stainless Steel, Aluminum Alloy |
| Panel Thickness | 50mm |
| Panel Width | 500mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| Sealing System | EPDM Rubber All-Round (Top, Bottom, Sides, Panel Joints) |
| Guide Rail | 2mm Hot-Dip Galvanized Steel |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort Scale 11, 28m/s |
| Sound Insulation | 26 dB |
| Max Dimension | 12m x 8m |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Opening Speed | 0.2-0.3m/s |
| Service Life | 10 years / 100,000 cycles |
| Balance System | Torsion Spring with Anti-Break Device |
Cold Storage Optimizations
- Rust-proof SUS304 panels suitable for high-humidity cold environments
- Optional heated guide rail system for sub-zero operation
- Rapid open/close to minimize cold air loss
- Finger-protection safety design on all panel joints
- Emergency manual chain hoist for power-off scenarios
Applications
Designed for cold storage warehouses, frozen food distribution centers, pharmaceutical cold chains, food processing plants, and any industrial facility requiring reliable thermal isolation in harsh weather conditions.
この製品の詳細を知りたい
