詳細情報 |
|||
| 材料: | 亜鉛メッキ鋼板、アルミニウム合金 | パネルの厚さ: | 42MM |
|---|---|---|---|
| パネル幅: | 500mm | 芯材: | ポリウレタンフォーム 48kg/m3 |
| R価値: | 13.73 | 開く速度: | 0.4m/s |
| 手術: | 電動、リモコン、手動 | 熱保存: | 4.5W/mh |
| 耐風性: | ビューフォート スケール 11、28m/s | 遮音性: | 24 dB |
| 耐火性: | クラスA | 寿命: | 10年 |
| 最高次元: | 12m×8m | 表面処理: | 粉体塗装 30um |
| 応用: | 工業用、倉庫、ガレージ、商業用 | ||
| ハイライト: | High Speed 0.4m/s Insulated Sectional Door,42mm PU Sandwich Panel Overhead Door,Energy Efficient R-Value 13.73 Sectional Door |
||
製品の説明

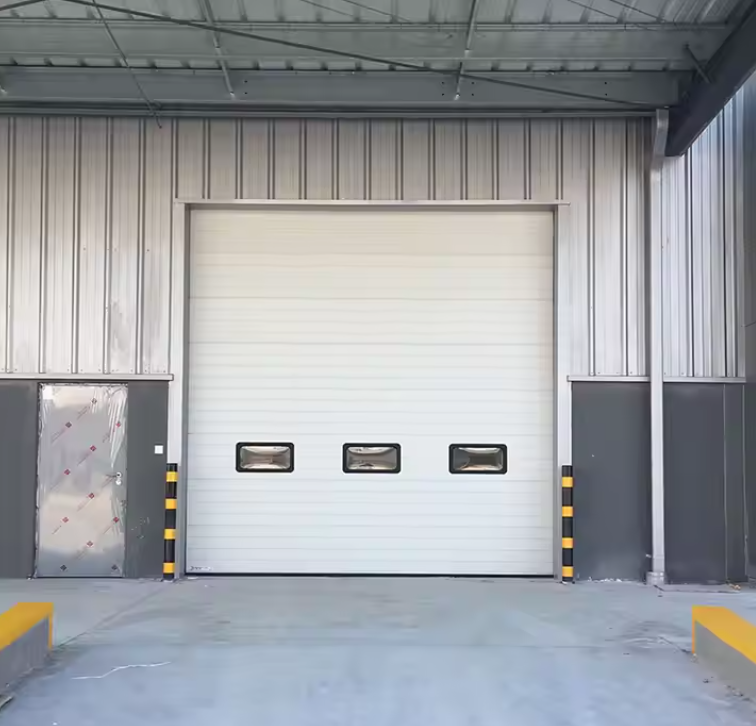

Energy Efficient High Speed Insulated Sectional Overhead Door
The SD6100 insulated sectional overhead door combines rapid 0.4m/s opening speed with industry-leading thermal performance. Designed for high-traffic industrial and commercial environments where both speed and energy efficiency are critical.
Key Features
- Industry-Leading R-Value 13.73: 42mm polyurethane foam sandwich panels deliver exceptional thermal insulation, reducing HVAC costs and maintaining stable indoor temperatures year-round.
- 0.4m/s High Speed Operation: Minimizes air exchange and heat loss during frequent open/close cycles, ideal for busy logistics centers and loading docks.
- 48kg/m3 High Density PU Core: Superior structural rigidity with excellent noise dampening at 24 dB sound insulation.
- Class A Fire Retardation: Meets stringent fire safety standards for industrial facilities.
- Beaufort 11 Wind Resistance: Engineered to withstand wind speeds up to 28m/s for exposed installations.
Technical Specifications
| Material | Galvanized Steel, Aluminum Alloy, Color Coating Plate |
| Panel Thickness | 42mm |
| Panel Width | 500mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| R-Value | 13.73 |
| Opening Speed | 0.2-0.4m/s |
| Guide Rail Thickness | 2mm Galvanized Steel |
| Surface Treatment | Powder Coating 30um |
| Heat Preservation | 4.5W/m.h |
| Sealing | EPDM Rubber All-Round Sealing |
| Max Dimension | 12m x 8m |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years / 100,000 cycles |
| Emergency Operation | Manual Hoist Chain |
Safety Systems
- Finger-protection (pinch-resistant) panel joint design
- Airbag safety edge for obstacle detection
- Door anti-fall device
- Wire rope anti-break protection
- Torsion spring balance system with spring brake device
Applications
Ideal for logistics warehouses, distribution centers, manufacturing plants, automotive workshops, and commercial garages where high-traffic access and thermal efficiency are priorities.
