Smart Remote Control Insulated Sectional Overhead Door Safety Airbag Sensor Anti-Fall Device 10 Year Service Life
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | DESEO |
| 証明: | CE/ISO9001:2008 |
| モデル番号: | SD5400 |
お支払配送条件:
| 最小注文数量: | 1台 |
|---|---|
| 価格: | USD 800-1100/UNIT |
| パッケージの詳細: | 電子部品保護付き合板パッケージ |
| 受渡し時間: | 10～25日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | 月額200ユニット |
|
詳細情報 |
|||
| 材料: | 亜鉛メッキ鋼板、カラーコーティングプレート | パネルの厚さ: | 40mm |
|---|---|---|---|
| パネル幅: | 500mm | 芯材: | ポリウレタンフォーム 48kg/m3 |
| 制御システム: | スマートリモコン、電動、手動 | 安全機能: | エアバッグセンサー、落下防止、破損防止、フィンガープロテクション |
| 運動保護: | IP 54 | 動作速度: | 0.2-0.4m/s |
| 寿命: | 10年/10万サイクル | 電源: | 380V 50Hz / 220V 50Hz |
| 最高次元: | 12m×8m | 遮音性: | 24 dB |
| 耐風性: | ビューフォート スケール 11、28m/s | 応用: | 商業、産業、ガレージ、倉庫 |
| ハイライト: | Smart remote control insulated sectional door,Overhead door safety airbag sensor,Anti-fall device with warranty |
||
製品の説明

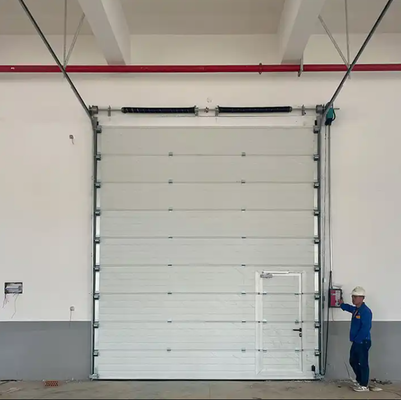

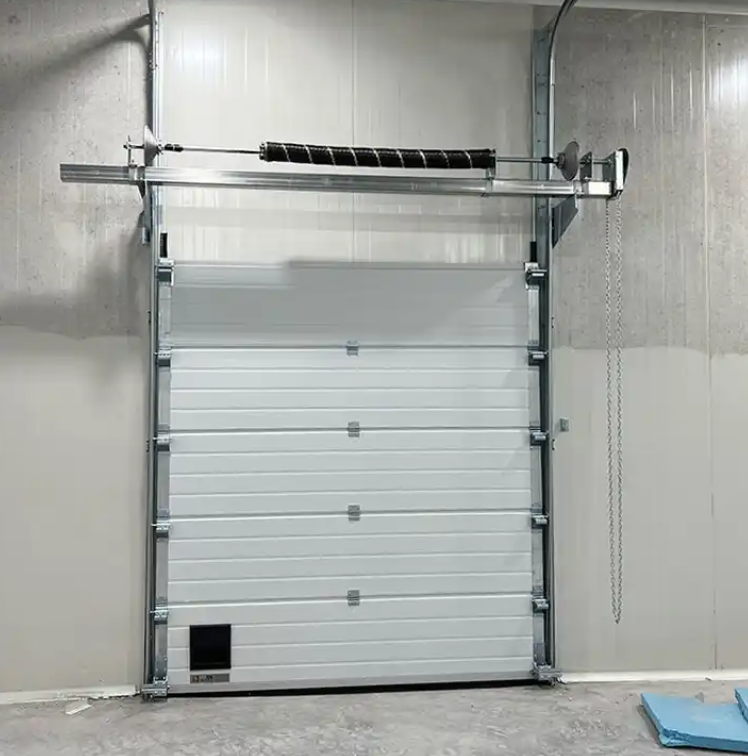

Smart Remote Control Insulated Sectional Overhead Door
The SD5400 smart insulated sectional overhead door combines advanced automation with comprehensive safety systems. Featuring remote control operation, safety airbag obstacle detection, and multiple redundant anti-fall mechanisms, it delivers both convenience and workplace safety compliance.
Key Features
- Smart Multi-Mode Control: Operate via remote control, wall-mounted push button, or manual chain hoist. Route-memorable control system with self-locking during power outages.
- Safety Airbag Sensor: Bottom edge pneumatic sensor detects obstacles instantly and reverses door movement, preventing accidents and equipment damage.
- Triple Anti-Fall Protection: Spring brake device, wire rope anti-break protection, and door anti-fall device ensure maximum operational safety.
- 10-Year Service Life: Engineered for 100,000 open/close cycles with IP54 motor protection class and 24 rpm motor for reliable long-term operation.
- Finger-Protection Design: Pinch-resistant panel joints prevent finger injuries during door operation.
Technical Specifications
| Material | Galvanized Steel, Aluminum Alloy, Color Coating Plate |
| Panel Thickness | 40mm |
| Panel Width | 500mm |
| Core Density | 48kg/m3 Polyurethane Foam |
| Control Methods | Remote Control, Electric Push Button, Manual Chain Hoist |
| Motor Protection Class | IP 54 |
| Motor Speed | 24 rpm |
| Opening Speed | 0.2-0.4m/s |
| Limit Switch | Electronic |
| Safety Systems | Airbag Sensor, Anti-Fall Device, Anti-Break Protection, Finger-Protection |
| Sealing | EPDM Rubber All-Round |
| Max Dimension | 12m x 8m |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years / 100,000 cycles |
| Noise Level | ≤60 dB |
Safety Compliance
- CE certified to European Union industrial door safety standards
- Tested and certified by EU-designated Italy Test Institute
- Airbag protection with automatic reverse on obstacle detection
- Self-locking mechanism engages automatically during power failure
- Emergency manual operation via chain hoist
Applications
Ideal for commercial garages, automotive workshops, logistics centers, retail loading bays, and industrial facilities where smart automation and comprehensive safety compliance are essential requirements.
